  GANG ROTAMETER






“Telelin” make high accuracy Gang Rotameters i.e A Gang of 4 to 5 Rotameters or more as required are used for batching purpose and used by valve manufacturers for testing of leak in various line sizes of valves manufactured by them. This rotameter can be easily carried on for the field purpose can be provided with common or individual inlet and outlet as desired with flow control valve at entry point individually or common. This rotameter can be provided in acrylic body or glass tube (In a Gang) mounted in a single casing.

PB-800 (Gang of Plastic Body Flowmeter. (rotameter)

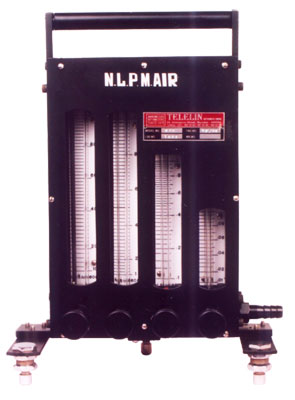

TELELIN make Plastic Body Gang rotameter, flow meter  using acrylic plastic body rotameters i.e gang of 4 to 5 flow meter accommodated in common casing with common  inlet and common outlet or Individual inlet & outlets can be provided with flow control valve at entery point .We are largest manufacturers exporters of Multiple tube rotameter or Multiple range rotameter from Mumbai,  India . Major clients includes Oil filed instruments makers, for testing in oil rings valve leak testing for different sizes .




SPECIFICATIONS

OUR MODEL NO :PB-800 ( Gang of acrylic plastic rotameters )

Range

Any no of ranges as required upto 7max

Scale

In your desired flow Units like ( cc or ml or litres or M3 or kg per minute / per hour

Connection

Threaded Male/ Female as required at rear

Connection orientation

At rear

Flowmeter body

Standard four side aluminium channel and panel made in between to make way for scale .

Scale

Calibrated scale  Engraved on acrylic  body itself

Metering Tube

Taper tube drilled and reamed in acrylic itself .

Casing

Can easily be used as a filed instrument with carrying handle on top.

MOC of wetted parts

Aluminium anodized standard , 304 S.S  / 316 S.S / M.S or as per requirement

Packing

Neoprene / Silicon / Teflon

Accuracy

+/-2% OF F.R

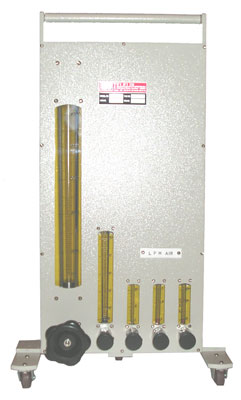

  TELELIN make Glass  rotameter Gang rotameter, flow meter  using Glass tube rotameters i.e gang of 4 to 5 flow meter in a common casing . Having common inlet and common outlet or Individual inlet & outlets can be provided with flow control valve at entry point . Telelin glass tube gang rotameter can be provided with minute ranges using imported taper glass tubes and high flows using our manufactured custom high accuracy taper tubes . We are yearly exporting 50 nos of this rotameter to various valve manufacturers and other filed testing purposes to gulf countries and in various Oil rings  instruments manufacturers.






SPECIFICATIONS

OUR MODEL NO :GB-800 ( Gang of Glass tube rotameters in common casing )

Range

Any no of rotameters in gang  upto 7max

Scale

In your desired flow Units like ( cc or ml or litres or M3 or kg per minute / per hour

Connection

Threaded Male/ Female as required at rear

Connection orientation

At rear

Flowmeter body

Standard four side aluminum channel and panel made in between to make way for scale .

Scale

Calibrated scale  Engraved on Milky white acrylic

Metering Tube

Taper glass tube

Flow Control Valve

Fine tune Flow control valve at entry point will be provided .

Casing

Can easily be used as a field instrument with carrying handle on top.

MOC of wetted parts

Aluminium anodized standard , 304 S.S  / 316 S.S / M.S or as per requirement

Packing

Neoprene / Silicon / Teflon

Accuracy

+/-2% OF F.R
